HELICAL Coupling

HELICAL Coupling - Clamping Screw Type



The HC Series is manufactured with two beams spirally twisted in a cylindrical material to provide soft elasticity in the direction of the axis length. It has excellent torsional rigidity, low moment of inertia, and excellent responsiveness. It is a coupling suitable for servo motors, stepping motors, encoders, etc. that require high speed and high response.

Part number
HC-C
HC-S
HC-SS
HCS-C
Product shape
Characteristic
Single-piece structure, low backlash, high torsional rigidity, low inertia, excellent responsiveness, good end play tension
Stainless steel integral,

Waterproof, oil-proof, chemical-proof, cleanable

High torsional rigidity

Standard
Standard type
Standard type
Short type
Standard type
Texture
Aluminum Alloy(AL7075-T6)
All Stainless Steel(SUS 303)
Axial coupling method
Clamp
Set Screw
Set Screw
Clamp
Outer diameter
Ø16, Ø20, Ø25, Ø32, Ø42, Ø48
Ø16, Ø20, Ø25, Ø32, Ø42, Ø48

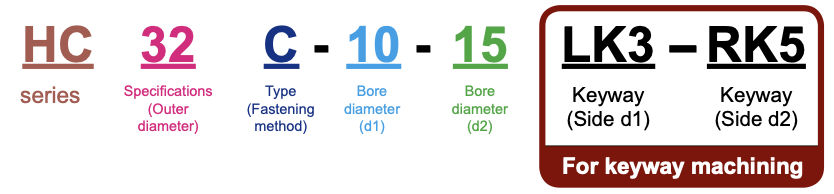

Ordering Instructions

  • Please specify the series, outer diameter, and bore size when placing your order.


  • If keyway machining (on the bore) is required, ensure to indicate this separately.


  • For assistance in selecting the right couplings, please contact our customer service center.

Standard Bore Diameter


※ Bore machining is available within the product’s minimum to maximum bore range beyond the standard bore sizes. (Refer to the figures on the right)

Standard bore diameter

(d1/d2,  mm)

3
4
5
6
6.35
8
10
12
14
15
16
18
19
20
22
24
25
26
HC 16 C
●
●
●
●
●
●












HC 20 C

●
●
●
●
●
●











HC 25 C


●
●
●
●
●
●










HC 32 C



●
●
●
●
●
●
●
●







HC 42 C





●
●
●
●
●
●
●
●
●
●



HC 48 C






●
●
●
●
●
●
●
●
●
●
●
●

Floor Plan

Dimension

Product Name
External Diameter(D)
Length(L)
Bore diameter range(d1/d2)
Shaft depth

Shaft Insert Distance(E)

Bolt Size(M)
Download File
Min. Bore Diameter

Max. Bore Diameter

Shaft Insert Length(L1)

Shaft Insert Length(L2)

DWG
3D(STEP)
HC 16 C

Ø16

22
3
8
7
7
8
M2.5

HC 20 C

Ø20

25
4
10
8
8
9
M2.5

HC 25 C

Ø25

30
5
13
10
10
10
M3

HC 32 C

Ø32

38
6
16
13
13
12
M4

HC 42 C

Ø42

45
8
25
16
16
13
M5

HC 48 C

Ø48

54
10
26
19
19
16
M5

Specification

Product Name
Rated

Torque(Nm)

Max

Torque(Nm)

Max. Rotational

Frequency(min-1)

Moment of

Inertia(kg*m²)

Static Torsional

Stiffness(Nm/rad)

Max. Lateral

Misalignment(mm)

Max. Angular

Misalignment(°)

Max. Axial

Misalignment(mm)

Mass(g)

HC 16 C
0.8
1.7
24,500

3.74x10-7

65
0.1
3
0.2
11.9

HC 20 C

1.1

2.1
20,000

1.03x10-6

140
0.1
3
0.2
21.2

HC 25 C

2.1

4.1

16,000

3.04x10-6

170
0.1
3
0.25
39.7

HC 32 C

4.1

8.2

13,000

1.03x10-5
380
0.15
3
0.3
82.5

HC 42 C

9.8

19.5

11,000

3.63x10-5
460
0.15
3
0.3
168.2

HC 48 C

14.6

29.2

9,000

7.44x10-5
740
0.15
3
0.3
263.7
