Alignment adjustment method

COUPLING is a component used to connect two opposing shafts to accurately transmit rotational power or rotational angle. In order to achieve this purpose, each mechanical element that constitutes the mechanism must be accurately processed and assembled.


If the MIS ALIGNMENT tolerance is large during installation, vibration or noise may occur or the life of the COUPLING may rapidly decrease. Be sure to adjust the MIS ALIGNMENT.

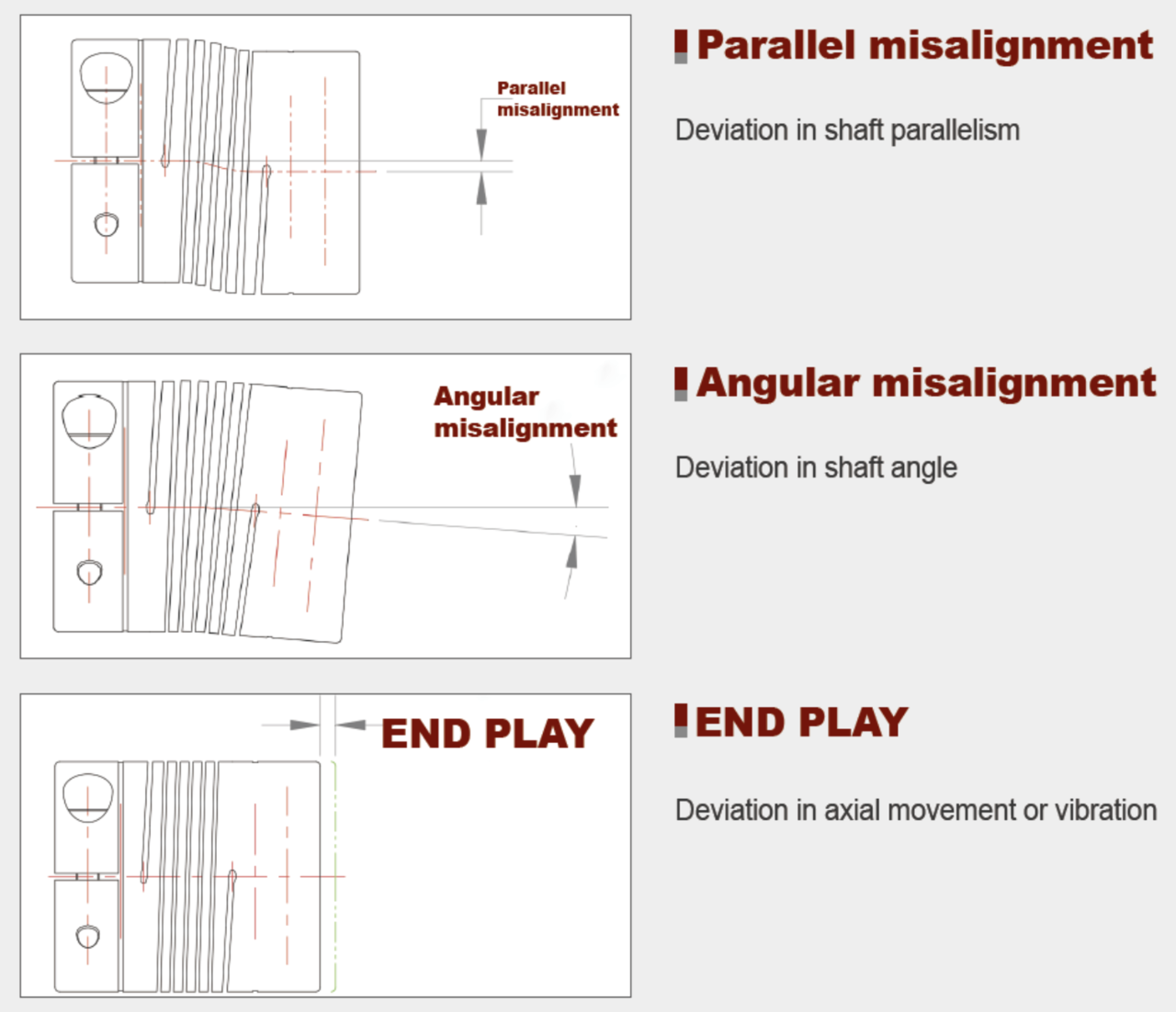

JIT COUPLING has suitable characteristics for each product. Please select and use the appropriate one. The MIS ALIGNMENT of the shaft has the following errors:


Eccentricity - Parallel error of both shafts


Misalignment - Angular error of both shafts


END PLAY - Axial movement or shaking of the shaft


In case of complex errors, select a coupling with one size larger.
