Rigid Coupling
Rigid Coupling Long Type - Set Screw Type

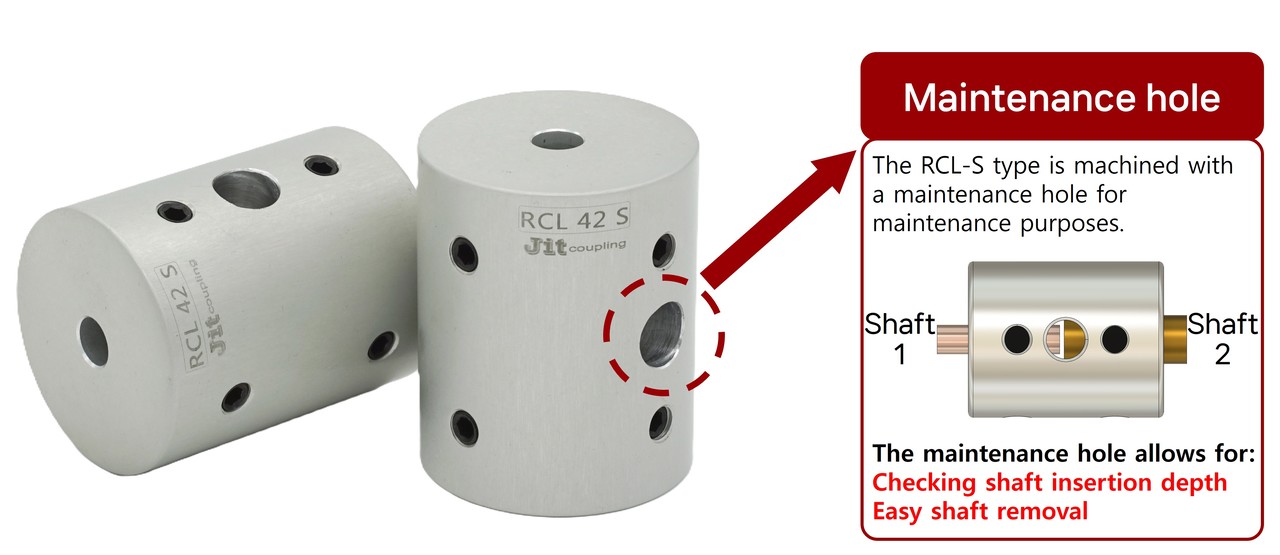

The RCL series does not allow eccentricity/angle and end play. The RCL-S type fixes both axes through set screws. The shaft fastening force can be increased by key machining.
Part number | RC | RCL | RCL-S |
Product shape |  |  |  |
Characteristic | Backlash Absolute Zero, Fully Integrated Coupling, One-Way Bolt Clamp, Standardized Bore | ||
Standard | Standard type | Long type | Long type |
Texture | Aluminum Alloy(AL7075-T6) | ||
Axial coupling method | Clamp | Set Screw | |
Outer diameter | Ø20, Ø25, Ø32, Ø42, Ø48 | Ø 16, Ø20, Ø25, Ø32, Ø42, Ø48 | |

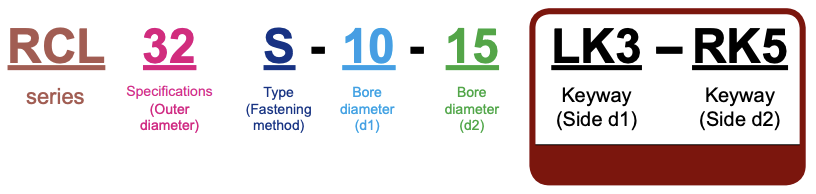

Ordering Instructions
For assistance in selecting the right couplings, please contact our customer service center.
Standard Bore Diameter
※ Bore machining is available within the product’s minimum to maximum bore range beyond the standard bore sizes. (Refer to the figures on the right)
Standard bore diameter (d1/d2, mm) | 3 | 4 | 5 | 6 | 6.35 | 8 | 10 | 12 | 13 | 14 | 15 | 16 | 18 | 19 | 20 | 22 | 24 | 25 | 26 | 28 | 30 |
RC 16 S | ● | ● | ● | ● | ● | ● | |||||||||||||||
RC 20 S | ● | ● | ● | ● | ● | ● | |||||||||||||||
RC 25 S | ● | ● | ● | ● | ● | ● | ● | ||||||||||||||
RC 32 S | ● | ● | ● | ● | ● | ● | ● | ● | ● | ||||||||||||
RC 42 S | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ||||||||
RC 48 S | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● |
Floor Plan
Dimension
Product Name | External Diameter(D) | Length(L) | Bore diameter range(d1/d2) | Shaft depth | Fastening position | Bolt Size(M) | Download File | ||||
Min. Bore Diameter | Max. Bore Diameter | Shaft Insert Length(L1) | Shaft Insert Length(L2) | Bolt Fastening Position(F1) | Bolt Fastening Position(F2) | DWG | 3D(STEP) | ||||
RC 16 S | Ø16 | 20 | 3 | 8 | 10 | 10 | 5 | 5 | M3 |  |  |
RC 20 S | Ø20 | 24 | 4 | 10 | 12 | 12 | 5.5 | 5.5 | M4 | | |
RC 25 S | Ø25 | 36 | 5 | 13 | 18 | 18 | 7.5 | 7.5 | M4 | | |
RC 32 S | Ø32 | 40 | 6 | 16 | 20 | 20 | 9 | 9 | M5 | | |
RC 42 S | Ø42 | 52 | 8 | 25 | 26 | 26 | 12 | 12 | M6 | | |
RC 48 S | Ø48 | 60 | 10 | 30 | 30 | 30 | 15.5 | 15.5 | M8 | | |
Specification
Product Name | Rated Torque(Nm) | Max Torque(Nm) | Max. Rotational Frequency(min-1) | Moment of Inertia(kg*m²) | Mass(g) |
RC 16 S | 0.8 | 1.2 | 25,000 | 3.40x10-7 | 12 |
RC 20 S | 1.5 | 2.5 | 23,250 | 9.92x10-7 | 18 |
RC 25 S | 2 | 4 | 18,500 | 3.69x10-6 | 38 |
RC 32 S | 4.5 | 9 | 11,900 | 1.10x10-6 | 70 |
RC 42 S | 8.5 | 20 | 9,500 | 4.11x10-5 | 160 |
RC 48 S | 20 | 40 | 7,500 | 7.92x10-5 | 240 |
