Rigid Coupling

Rigid Coupling - Clamp Standard Type

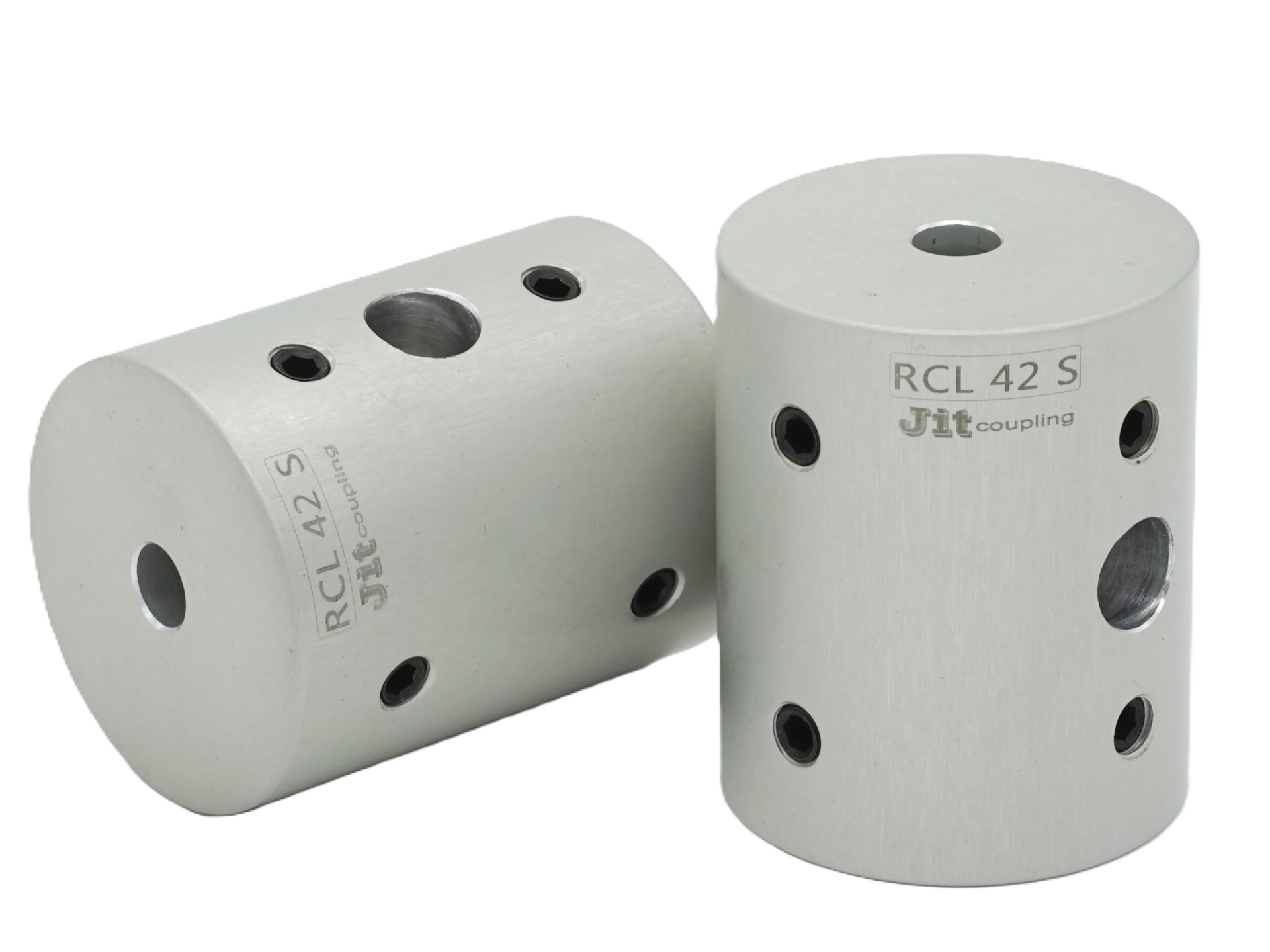

RCL couplings do not allow eccentricity or angular end play. The RCL TYPE is a type that increases shaft fastening strength by clamping with two bolts per shaft to transmit strong torque compared to the outer diameter.

Part number
RC
RCL
RCL-S
Product shape
Characteristic
Backlash Absolute Zero, Fully Integrated Coupling, One-Way Bolt Clamp, Standardized Bore
Standard
Standard type
Long type
Long type
Texture
Aluminum Alloy(AL7075-T6)
Axial coupling method
Clamp
Set Screw
Outer diameter
Ø20, Ø25, Ø32, Ø42, Ø48
Ø 16, Ø20, Ø25, Ø32, Ø42, Ø48

Ordering Instructions

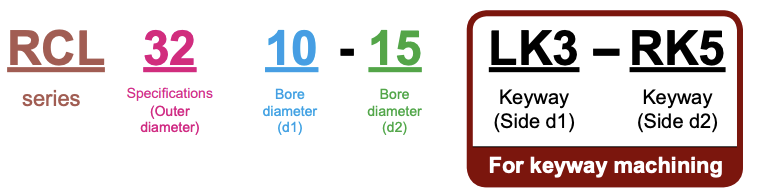

  • Please specify the series, outer diameter, and bore size when placing your order.


  • If keyway machining (on the bore) is required, ensure to indicate this separately.


  • For assistance in selecting the right couplings, please contact our customer service center.

Standard Bore Diameter


※ Bore machining is available within the product’s minimum to maximum bore range beyond the standard bore sizes. (Refer to the figures on the right)

Standard bore diameter

(d1/d2,  mm)

3
4
5
6
6.35
8
10
12
13
14
15
16
18
19
20
22
24
25
26
28
RCL 20


●
●
●
●
●













RCL 25



●
●
●
●
●
●











RCL 32





●
●
●
●
●
●
●








RCL 42






●
●
●
●
●
●
●
●
●
●




RCL 48






●
●
●
●
●
●
●
●
●
●
●
●
●
●

Floor Plan

Dimension

Product Name
External Diameter(D)
Length(L)
Bore diameter range(d1/d2)
Shaft depth

Shaft Insert Distance(E)

Bolt Size(M)
Download File
Min. Bore Diameter

Max. Bore Diameter

Shaft Insert Length(L1)

Shaft Insert Length(L2)

DWG
3D(STEP)

RCL 20

Ø20

24
5
10
11
11
2
M2.5

RCL 25

Ø25

36
6
13
17
17
2
M3

RCL 32

Ø32

40
8
16
19
19
2
M4

RCL 42

Ø42

52
10
22
25
25
2
M5

RCL 48

Ø48

60
10
28
29
29
2
M6

Specification

Product Name
Rated

Torque(Nm)

Max

Torque(Nm)

Max. Rotational

Frequency(min-1)

Moment of

Inertia(kg*m²)

Mass(g)

RCL 20

1

2
19,250

9.2x10-7

18

RCL 25

2

4

15,500

3.2x10-6

38

RCL 32

4

8

11,900

7.6x10-6
70

RCL 42

8.5

17

9,500

2.1x10-5
160

RCL 48

20

40

7,500

4.3x10-5
240
