PEEK Oldham Coupling

PEEK Oldham Coupling -

Clamping Screw & Set Screw Hybrid Type



OCP-CS Type can be mounted using a clamping screw on one side and a set screw on the other side for easy mounting. The hub is made of high-strength aluminum (AL7075-6T) and the spacer is made of PEEK material, making it suitable for special purposes. The hub surface is anodized for excellent corrosion resistance.

Part number
OCP-C
OCP-S
OCP-CS
Product shape
Characteristic
High torque, excellent vibration absorption, precision machining, high-precision PEEK spacer insertion, excellent electrical properties, low exhaust gas
Standard
Standard/Long Type
Standard type
Standard type
Texture
Aluminum (AL7075-T6) / Spacer (PEEK)
Axial coupling method
Clamping
Set Screw
Clamping, Set Screw
Outer diameter
Ø20, Ø25, Ø32, Ø42

Ordering Instructions

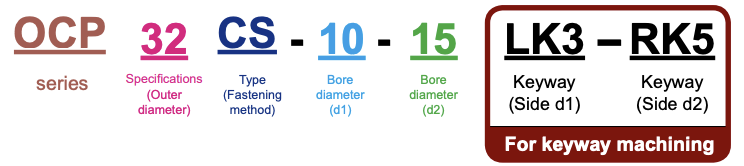

  • Please specify the series, outer diameter, and bore size when placing your order.


  • If keyway machining (on the bore) is required, ensure to indicate this separately.


  • For assistance in selecting the right couplings, please contact our customer service center.

Standard Bore Diameter


※ Bore machining is available within the product’s minimum to maximum bore range beyond the standard bore sizes. (Refer to the figures on the right)

표준내경

(d1/d2,  mm)

3
4
5
6
6.35
8
10
12
14
15
16
18
19
20
22
OCP 20 CS

●
●
●
●
●
●








OCP 25 CS


●
●
●
●
●
●







OCP 32 CS



●
●
●
●
●
●
●
●




OCP 42 CS





●
●
●
●
●
●
●
●
●
●

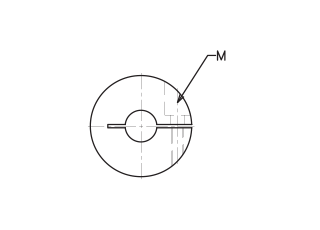

Floor Plan

Dimension

Product Name
External Diameter(D)
Length(L)
Bore diameter range(d1/d2)
Shaft depth

Shaft Insert Distance(E)

Bolt Size(M)
Download File
Min. Bore Diameter

Max. Bore Diameter

Shaft Insert Length(L1)

Shaft Insert Length(L2)

DWG
3D(STEP)
OCP 20 CS

Ø20

23.5
4
10
8
6.5
9
M2.5/M4
OCP 25 CS

Ø25

30
5
13
9.5
7.5
13
M3/M4
OCP 32 CS

Ø32

36
6
16
11.5
9.5
15
M4/M5
OCP 42 CS

Ø42

45
8
22
15
12
18
M5/M6

Specification

Product Name
Rated

Torque(Nm)

Rated

Torque(Nm)

Max. Rotational

Frequency(min-1)

Moment of

Inertia(kg*m²)

Static Torsional

Stiffness(Nm/rad)

Max. Lateral

Misalignment(mm)

Max. Angular

Misalignment(°)

Max. Axial

Misalignment(mm)

Mass(g)

OCP 20 CS
1.9
3.8
10,500
1.03x10-6
120
1.2
2
0.08
21.2
OCP 25 CS
2.9
5.9
9,250

3.24x10-6

200
1.6
2
0.1
42.4
OCP 32 CS
8.5
17
8,500

1.03x10-5

600
2.0
2
0.1
82.5
OCP 42 CS
18
36
8,000
3.87x10-5
1,200
2.8
2
0.1
179
