JIT COUPLING


PRODUCT

PEEK Oldham Coupling

PEEK Oldham Coupling -

Clamping Screw Type



The OCP Series is a coupling designed for relatively wide axial misalignment (eccentricity) ranges by machining a groove on the end of a cylindrical aluminum material and inserting a PEEK spacer with excellent lubricity. PEEK material has excellent chemical resistance, very low moisture absorption, excellent wear resistance, and is not affected by exposure to high temperature environments. PEEK is generally suitable for environments where it comes into contact with heat and chemicals.

Part number
OCP-C
OCP-S
OCP-CS
Product shape
Characteristic
High torque, excellent vibration absorption, precision machining, high-precision PEEK spacer insertion, excellent electrical properties, low exhaust gas
Standard
Standard/Long Type
Standard type
Standard type
Texture
Aluminum (AL7075-T6) / Spacer (PEEK)
Axial coupling method
Clamping
Set Screw
Clamping, Set Screw
Outer diameter
Ø20, Ø25, Ø32, Ø42

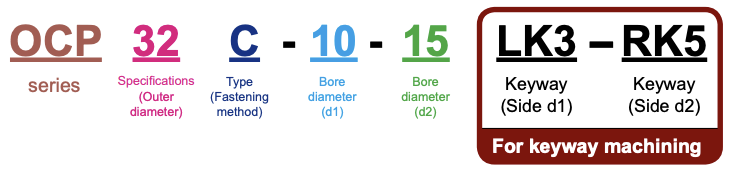

Ordering Instructions

  • Please specify the series, outer diameter, and bore size when placing your order.


  • If keyway machining (on the bore) is required, ensure to indicate this separately.


  • For assistance in selecting the right couplings, please contact our customer service center.

Standard Bore Diameter


※ Bore machining is available within the product’s minimum to maximum bore range beyond the standard bore sizes. (Refer to the figures on the right)

Standard bore diameter

(d1/d2,  mm)

3
4
5
6
6.35
8
10
12
13
14
15
16
18
19
20
22
24
26
28
OCP 20 C

●
●
●
●
●
●












OCP 25 C


●
●
●
●
●
●











OCP 32 C



●
●
●
●
●
●
●
●
●







OCP 32 CL



●
●
●
●
●
●
●
●
●







OCP 42 C





●
●
●
●
●
●
●
●
●
●
●



OCP 54 C






●
●
●
●
●
●
●
●
●
●
●
●
●

Floor Plan

Dimension

Product Name
External Diameter(D)
Length(L)
Bore diameter range(d1/d2)
Shaft depth

Shaft Insert Distance(E)

Bolt Size(M)
Download File
Min. Bore Diameter

Max. Bore Diameter

Shaft Insert Length(L1)

Shaft Insert Length(L2)

DWG
3D(STEP)
OCP 20 C

Ø20

25
4
10
8
8
9
M2.5
OCP 25 C

Ø25

32
5
13
9.5
9.5
13
M3
OCP 32 C

Ø32

38
6
16
11.5
11.5
15
M4
OCP 32 CL

Ø32

45
6
16
15
15
15
M4
OCP 42 C

Ø42

48
8
22
15
15
18
M5
OCP 54 C

Ø54

58
10
30
17
17
24
M6
Please contact us for the drawing.

Specification

Product Name
Rated

Torque(Nm)

Rated

Torque(Nm)

Max. Rotational

Frequency(min-1)

Moment of

Inertia(kg*m²)

Static Torsional

Stiffness(Nm/rad)

Max. Lateral

Misalignment(mm)

Max. Angular

Misalignment(°)

Max. Axial

Misalignment(mm)

Mass(g)

OCP 20 C
1.9
3.8
10,500
1.03x10-6
120
1.2
2
0.08
21.2
OCP 25 C
2.9
5.9
9,250

3.24x10-6

200
1.6
2
0.1
42.4
OCP 32 C
8.5
17
8,500

1.03x10-5

600
2.0
2
0.1
82.5
OCP 32 CL
8.5
17
8,500
1.03x10-5
600
2.0
2
0.1
106
OCP 42 C
18
36
8,000
3.87x10-5
1,200
2.8
2
0.1
179
OCP 54 C
32
64
6,850
1.42x10-4
6,850
3.5
2
0.2
220
