JIT COUPLING


PRODUCT

Oldham Coupling

Oldham Coupling - Set Screw Type



The OC Series has no shaft interference by penetrating the inside of the spacer. It is designed to relieve the pressure generated in the spacer, thereby reducing the frequency of coupling breakage. The OC Series spacer is a complete insulator, thus blocking electrical noise.

Part number
OC-C
OC-S
OC-CS
Product shape
Characteristic
High tolerance, large eccentricity angle allowed, high torque, excellent electrical insulation, very small misalignment axial load
Standard
Standard/Long Type
Standard type
Standard type
Texture
Aluminum (AL7075-T6) / Spacer (Poly Acetal)
Axial coupling method
Clamping
Set Screw
Clamping, Set Screw
Outer diameter
Ø16, Ø20, Ø25, Ø32, Ø42, Ø54

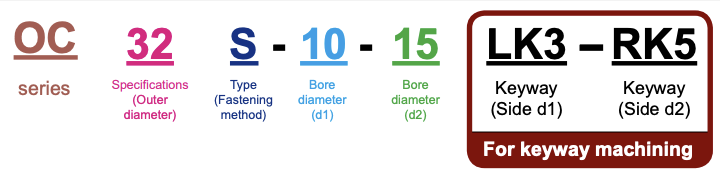

Ordering Instructions

  • Please specify the series, outer diameter, and bore size when placing your order.


  • If keyway machining (on the bore) is required, ensure to indicate this separately.


  • For assistance in selecting the right couplings, please contact our customer service center.

Standard Bore Diameter


※ Bore machining is available within the product’s minimum to maximum bore range beyond the standard bore sizes. (Refer to the figures on the right)

Standard bore diameter

(d1/d2,  mm)

3
4
5
6
6.35
8
10
12
13
14
15
16
18
19
20
22
OC 16 S
●
●
●
●
●
●










OC 20 S

●
●
●
●
●
●









OC 25 S


●
●
●
●
●
●
●







OC 32 S



●
●
●
●
●
●
●
●
●
●



OC 42 S





●
●
●
●
●
●
●
●
●
●
●

Floor Plan

Dimension

Product Name
External Diameter(D)
Length(L)
Bore diameter range(d1/d2)
Shaft depth

Shaft Insert Distance(E)

Bolt Size(M)
Download File
Min. Bore Diameter

Max. Bore Diameter

Shaft Insert Length(L1)

Shaft Insert Length(L2)

DWG
3D(STEP)
OC 16 S

Ø16

20
3
8
6
6
8
M3
OC 20 S

Ø20

22
4
10
6.5
6.5
9
M4
OC 25 S

Ø25

28
5
13
7.5
7.5
13
M4
OC 32 S

Ø32

34
6
18
9.5
9.5
15
M5
OC 42 S

Ø42

42
8
22
12
12
18
M6

Specification

Product Name
Rated

Torque(Nm)

Rated

Torque(Nm)

Max. Rotational

Frequency(min-1)

Moment of

Inertia(kg*m²)

Static Torsional

Stiffness(Nm/rad)

Max. Lateral

Misalignment(mm)

Max. Angular

Misalignment(°)

Max. Axial

Misalignment(mm)

Mass(g)

OC 16 S
1.2
2.4
12,500
3.40x10-7
65
1
2
0.05
10.9
OC 20 S
1.8
3.6
10,500
9.13x10-7
120
1.5
2
0.0.8
18.7
OC 25 S
2.8
5.6
9,250

2.83x10-6

200
2
2
0.1
37.1
OC 32 S
8
16
8,500

9.25x10-6

620
2.5
2
0.1
73.8
OC 42 S
17
34
8,000
3.39x10-5
1,200
3
2
0.1
157
