JCL-CW Type

Jaw-Type Connecting Shaft -

Split Clamping Screw Method

The JCL Series has excellent power transmission efficiency when the distance between shafts is long. In the case of the JCL-CW Type, the shaft connection method uses a separate clamping screw method, making assembly and maintenance easy. It has the excellent torque transmission capability of the jaw coupling. When using a connecting shaft, it is possible to transmit power over long distances more efficiently and precisely than the method of connecting with [coupling-shaft-coupling]. It can be used perfectly in the design environment through custom-length order production.

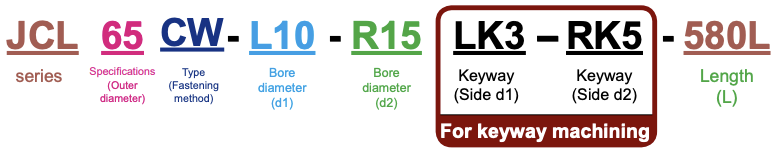

Part number	JCL-C	JCL-CW
Product shape
Characteristic	In case of long shaft distance, you can freely select the length of the coupling coupling with an aluminum tube installed between the two couplings for power transmission within the range of 3000mm. The hollow pipe connecting the center has relatively high rigidity and low density, so power loss is small. In the case of the connecting shaft, the detachable clamp method is preferred due to the convenience of assembly and maintenance. The maximum advantage of the jaw coupling that uses a poly-urethane material spacer is its excellent torque transmission. Precise concentricity and straightness are realized by using a high-precision tube of H9 grade Inertia moment is minimized by using aluminum alloy material Simple installation and effective vibration/shock absorption. The appropriate operating temperature range is -20˚~50˚. It is mainly used for power base / gear box / servo box / cam base, etc.
Length	100~3,000mm freely specified
Texture	HUB-Aluminum (AL7075-T6) / PiPE-Aluminum(6061-0) / Spacer (Poly-Urethane)
Axial coupling method	Standard type	Split type
Outer diameter	ø32 , ø42 , ø54 , ø65 , ø80

SERIES	Outer diameter		Length					Bore diamater	Fastening bolt	Download File
SERIES	D	D1	L	L1	L2	L3	L4	d1/d2	M	DWG	3D(step)
JCL 32 CW	Ø32	Ø31	100-3000	11	16	27	32	6~16	M4
JCL 42 CW	Ø42	Ø38	150-3000	15	21	33	40	8~22	M5
JCL 54 CW	Ø54	Ø47	180-3000	20	30	46	55	10~30	M6
JCL 65 CW	Ø65	Ø58	200-3000	20	28	46	58	14~35	M8
JCL 80 CW	Ø80	Ø72	300-3000	33	46	67	84	14~45	M10

SERIES	Rated Torque(Nm)	Maximum torque (Nm)	Maximum rotational speed (RPM)		Torsional rigidity (Nm/rad)		Allowable eccentricity (mm)	Allowable angular misalignment (°)	Allowable end-play (mm)
SERIES	Rated Torque(Nm)	Maximum torque (Nm)	800 or below	1000 or above	Coupling	Pipe	Allowable eccentricity (mm)	Allowable angular misalignment (°)	Allowable end-play (mm)
JCL 32 C	30	35	1,500	800	800	1,400	6	3	1
JCL 42 C	40	45	1,500	800	2,300	3,600	6	3	1
JCL 54 C	120	150	1,500	800	7,600	12,000	5	2.5	1.2
JCL 65 C	260	300	1,500	800	9,200	18,600	4	2	1.4
JCL 80 C	620	750	1,500	800	18,000	36,000	3	2	1.5
