JIT COUPLING


PRODUCT

Jaw Coupling

Jaw Coupling - Set Screw Type



The JC Series is a structure that creates 2 to 4 protrusions on a cylindrical aluminum material and inserts high-elasticity polyurethane (SH98A) spacers between the protrusions. It is suitable for use in places with rapid rotational loads or frequent static and reversal. It has a structure that is very easy to disassemble and assemble, and since the spacer is an insulator, it has an electrical noise blocking effect.

Part number
JC-C
JC-S
JC-CS
Product shape
Characteristic
High torque, excellent vibration absorption, precision machining, high-precision sleeve insertion
Clamping shaft fastening method
Set screw shaft fastening method
Clamping/Set Screw Combination
Standard
Standard type
Texture
Aluminum (AL7075-T6) / Spacer (Poly_Urethane)
Axial coupling method
Clamping
Set Screw
Clamping, Set Screw
Outer diameter
Ø16, Ø20, Ø25, Ø32, Ø42, Ø48, Ø54, Ø65, Ø80, Ø104
Ø16, Ø20, Ø25, Ø32, Ø42, Ø48, Ø54, Ø65
Ø16, Ø20, Ø25, Ø32, Ø42, Ø48, Ø54, Ø65

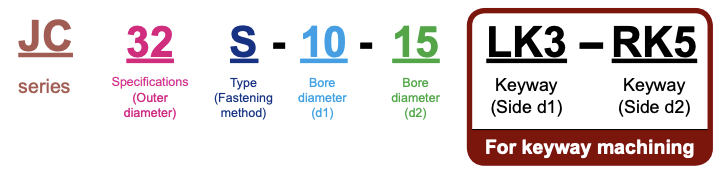

Ordering Instructions

  • Please specify the series, outer diameter, and bore size when placing your order.


  • If keyway machining (onthebore) is required, ensure to indicate this separately.


  • For assistance in selecting the right couplings, please contact our customer service center.

Standard Bore Diameter


※ Bore machining is available within the product’s minimum to maximum bore range beyond the standard bore sizes. (Refer to the figures on the right)

표준내경

(d1/d2,  mm)

3
4
5
6
6.35
8
10
12
14
15
16
18
19
20
22
24
25
26
28
30
32
35
JC 16 S
●
●
●
●
●
●
















JC 20 S

●
●
●
●
●
●















JC 25 S


●
●
●
●
●
●














JC 32 S



●
●
●
●
●
●
●
●
●










JC 42 S





●
●
●
●
●
●
●
●
●
●







JC 48 S






●
●
●
●
●
●
●
●
●
●
●





JC 54 S







●
●
●
●
●
●
●
●
●
●
●
●
●


JC 65 S








●
●
●
●
●
●
●
●
●
●
●
●
●
●

Floor Plan

Dimension

Product Name
External Diameter(D)
Length(L)
Bore diameter range(d1/d2)
Shaft depth

Shaft Insert Distance(E)

Bolt Size(M)
Download File
Min. Bore Diameter

Max. Bore Diameter

Shaft Insert Length(L1)

Shaft Insert Length(L2)

DWG
3D(STEP)
JC 16 C

Ø16

23.6
3
8
8
8
7.6
M3
JC 20 C

Ø20

30
4
10
10
10
10
M4
JC 25 C

Ø25

35
5
13
12
12
11
M5
JC 32 C

Ø32

44
6
18
16
16
12
M6
JC 42 C

Ø42

55
8
22
21
21
13
M6
JC 48 C

Ø48

66
10
25
25
25
16
M8
Please contact us for the drawing.
JC 54 C

Ø54

78
12
30
30
30
18
M8
JC 65 C

Ø65

90
14
35
35
35
20
M10

Specification

Product Name
Rated

Torque(Nm)

Rated

Torque(Nm)

Max. Rotational

Frequency(min-1)

Moment of

Inertia(kg*m²)

Static Torsional

Stiffness(Nm/rad)

Max. Lateral

Misalignment(mm)

Max. Angular

Misalignment(°)

Max. Axial

Misalignment(mm)

Mass(g)

JC 16 C
4
5.2
14,000
4.01x10-7
15
0.1
1
0.1
12.8
JC 20 C
8.6
12
13,500
1.24x10-6
28
0.13
1
0.1
25.4
JC 25 C
18.2
23.6
12,500

3.54x10-6

43
0.15
1
0.15
46.3
JC 32 C
26.4
33
11,500

1.19x10-5

72
0.2
1
0.2
85.5
JC 42 C
36.8
44.2
9,000
4.44x10-5
600
0.2
1
0.2
205.6
JC 48 C
66
82
7,700
1.12x10-4
1,000
0.2
1
0.2
280
JC 54 C
120
154
6,900
1.65x10-4
1,400
0.2
1
0.2
320
JC 65 C
300
348
5,750
4.1x10-4
2,900
0.2
1
0.5
565
