Jaw Coupling

Jaw Coupling - Clamping Screw Type



The JC Series is a structure in which 2 to 4 protrusions are made on a cylindrical aluminum material and high-elasticity polyurethane (SH98A) spacers are inserted between the protrusions. It is suitable for use in places with rapid rotational loads or frequent static and reversal. It is designed to be very easy to disassemble and assemble, and since the spacers are insulators, you can see the effect of blocking electrical noise.

Part number
JC-C
JC-S
JC-CS
Product shape
Characteristic
High torque, excellent vibration absorption, precision machining, high-precision sleeve insertion
Clamping shaft fastening method
Set screw shaft fastening method
Clamping/Set Screw Combination
Standard
Standard type
Texture
Aluminum (AL7075-T6) / Spacer (Poly_Urethane)
Axial coupling method
Clamping
Set Screw
Clamping, Set Screw
Outer diameter
Ø16, Ø20, Ø25, Ø32, Ø42, Ø48, Ø54, Ø65, Ø80, Ø104
Ø16, Ø20, Ø25, Ø32, Ø42, Ø48, Ø54, Ø65
Ø16, Ø20, Ø25, Ø32, Ø42, Ø48, Ø54, Ø65

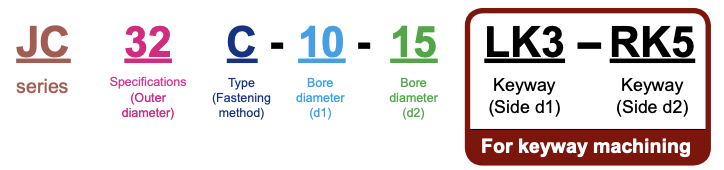

Ordering Instructions

  • Please specify the series, outer diameter, and bore size when placing your order.


  • If keyway machining (onthebore) is required, ensure to indicate this separately.


  • For assistance in selecting the right couplings, please contact our customer service center.

Standard Bore Diameter


※ Bore machining is available within the product’s minimum to maximum bore range beyond the standard bore sizes. (Refer to the figures on the right)

Standard bore diameter

(d1/d2,  mm)

3
4
5
6
6.35
8
10
12
14
15
16
18
19
20
22
24
25
26
28
30
32
35
40
45
50
60
JC 16 C
●
●
●
●
●
●




















JC 20 C

●
●
●
●
●
●



















JC 25 C


●
●
●
●
●
●


















JC 32 C



●
●
●
●
●
●
●
●















JC 42 C





●
●
●
●
●
●
●
●
●
●











JC 48 C






●
●
●
●
●
●
●
●
●
●
●









JC 54 C







●
●
●
●
●
●
●
●
●
●
●
●
●






JC 65 C








●
●
●
●
●
●
●
●
●
●
●
●
●
●




JC 80 C








●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●


JC 100 C













●
●
●
●
●
●
●
●
●
●
●
●
●

Floor Plan

Dimension

Product Name
External Diameter(D)
Length(L)
Bore diameter range(d1/d2)
Shaft depth

Shaft Insert Distance(E)

Bolt Size(M)
Download File
Min. Bore Diameter

Max. Bore Diameter

Shaft Insert Length(L1)

Shaft Insert Length(L2)

DWG
3D(STEP)
JC 16 C

Ø16

23.6
3
8
8
8
7.6
M2.5
JC 20 C

Ø20

30
4
10
10
10
10
M3
JC 25 C

Ø25

35
5
13
12
12
11
M3
JC 32 C

Ø32

44
6
16
16
16
12
M4
JC 42 C

Ø42

55
8
22
21
21
13
M5
JC 48 C

Ø48

66
10
25
25
25
16
M6
JC 54 C

Ø54

78
12
30
30
30
18
M6
JC 65 C

Ø65

90
14
35
35
35
20
M8
JC 80 C

Ø80

114
14
45
46
46
22
M10
JC 100 C

Ø104

140
20
60
56
56
28
M12

Specification

Product Name
Rated

Torque(Nm)

Rated

Torque(Nm)

Max. Rotational

Frequency(min-1)

Moment of

Inertia(kg*m²)

Static Torsional

Stiffness(Nm/rad)

Max. Lateral

Misalignment(mm)

Max. Angular

Misalignment(°)

Max. Axial

Misalignment(mm)

Mass(g)

JC 16 C
4
5.2
14,000
4.01x10-7
15
0.1
1
0.1
12.8
JC 20 C
8.6
12
13,500
1.24x10-6
28
0.13
1
0.1
25.4
JC 25 C
18.2
23.6
12,500

3.54x10-6

43
0.15
1
0.15
46.3
JC 32 C
26.4
33
11,500

1.19x10-5

72
0.2
1
0.2
85.5
JC 42 C
36.8
44.2
9,000
4.44x10-5
600
0.2
1
0.2
205.6
JC 48 C
66
82
7,700
1.12x10-4
1,000
0.2
1
0.2
280
JC 54 C
120
154
6,900
1.65x10-4
1,400
0.2
1
0.2
320
JC 65 C
300
348
5,750
4.1x10-4
2,900
0.2
1
0.5
565
JC 80 C

640

765

4,750

8.7x10-4

6,500
0.2
1
0.5
870
JC 100 C

1,050

1,200

4,000

4.7x10-3
22,000
0.3
1
0.5
2,200
