JIT COUPLING


PRODUCT

High-Performance Disc Type Connecting Shaft

High-Performance Disc Type Connecting Shaft - Split Clamping Screw Method



The HDCL Series has excellent power transmission efficiency when the distance between shafts is long. In the case of the HDCL-CW Type, it is easy to assemble and maintain because it is fastened with a separate clamping screw method. It has the excellent torque transmission capability of the HDC Series. When using a connecting shaft, it is possible to transmit power over long distances more efficiently and precisely than the method of connecting with [coupling-shaft-coupling]. It can be used perfectly in the design environment through custom-length order production.

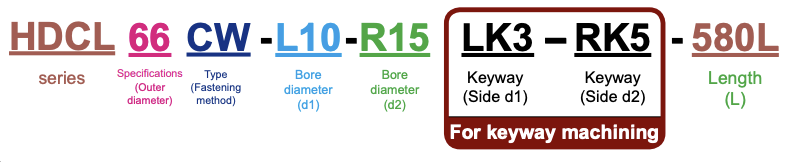

Ordering Instructions

  • Please specify the series, outer diameter, and bore size when placing your order.


  • If keyway machining (on the bore) is required, ensure to indicate this separately.


  • For assistance in selecting the right couplings, please contact our customer service center.

Standard Bore Diameter


※ Bore machining is available within the product’s minimum to maximum bore range beyond the standard bore sizes. (Refer to the figures on the right)

Standard bore diameter

(d1/d2,  mm)

10
12
14
15
16
17
18
20
22
24
25
26
28
30
32
35
36
38
40
42
44
45
48
50
HDCL 56 CW
●
●
●
●
●
●
●
●
●
●
●
●
●











HDCL 66 CW

●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●






HDCL 88 CW


●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●

Floor Plan

Dimension

SERIES
Outer diameter
Length
Bore
diamater
Fastening bolt
Download File
D
D1

L

L1

L2

L3

L4

d1/d2

M

DWG
3D(step)
HDCL 56 CW

Ø56

Ø47

180-3000

13.3
19.5
24.7
47

10~28

M6
Please contact us for drawing.
HDCL 66 CW

Ø66

Ø58

200-3000

16.1
24.5
32
52

12~38

M6
HDCL 88 CW

Ø88

Ø72

300-3000

19
30
40
56

14~50

M8

Specification

SERIES
Rated

Torque(Nm)

Maximum torque (Nm)

Maximum rotational speed (RPM)

Torsional rigidity (Nm/rad)

Allowable eccentricity (mm)

Allowable angular misalignment (°)

Allowable end-play (mm)

800 or below

1000 or above

Coupling

Pipe
HDCL 56 C
60
110
1,500
800
18,000
12,000
10
1.5
1.2
HDCL 66 C
110
140
1,500
800
26,000
18,600
10
1.5
1.4
HDCL 88 C
260
280
1,500

800

64,000
36,000
10
1.5
2
