JIT COUPLING


PRODUCT

High-Strength Disc Coupling

High-Strength Disc Coupling -

Clamping Screw Double Disc Type



It consists of two shafts and several thin metal discs that transmit torque. The HDC-B Type is ideal for situations where high torque occurs and where there is a difference in shaft diameter. For example, it is ideal for connecting a large shaft diameter of a servo motor reducer output shaft and a small shaft diameter of a ball screw shaft. The high-elasticity disc is made of stainless steel and has a long lifespan.

Part number
HDC-A
HDC-SA
HDC-B
HDC-SB
HDC-C
HDC-SC

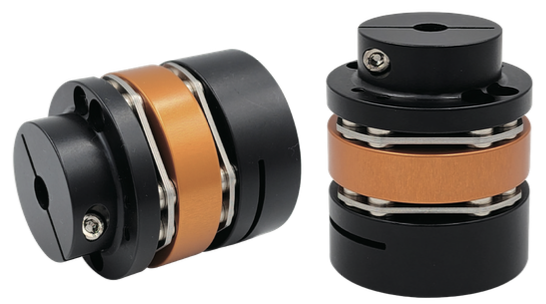

Product shape
Characteristic
Excellent high-precision position control, same positive and negative torsional constant, no maintenance required, high torsional rigidity, high torque
Backlash 0
Excellent use of short space
Suitable for use with sub reducers
Use of large shaft diameter for space
Standard
Standard type
Short type
Standard type
Short type
Standard type
Short type
Texture
Aluminum (AL7075-T6) / Disc (Stainless Steel)
Axial coupling method
Clamping
Outer diameter
Ø56, Ø66, Ø88

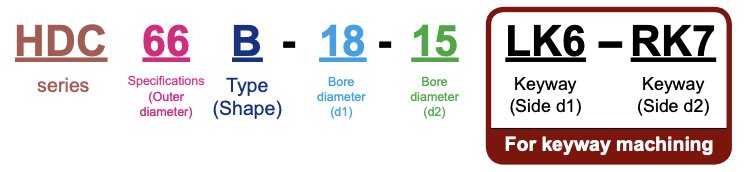

Ordering Instructions

  • Please specify the series, outer diameter, and bore size when placing your order.


  • If keyway machining (on the bore) is required, ensure to indicate this separately.


  • For assistance in selecting the right couplings, please contact our customer service center.

Standard Bore Diameter


※ Bore machining is available within the product’s minimum to maximum bore range beyond the standard bore sizes. (Refer to the figures on the right)

Standard bore diameter

(d1/d2,  mm)

10
12
14
15
16
17
18
20
22
24
25
26
28
30
32
35
36
38
40
42
44
45
48
50
HDC 56 B
●
●
●
●
●
●
●
●
●
●
●
●
●











HDC 66 B

●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●






HDC 88 B


●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●

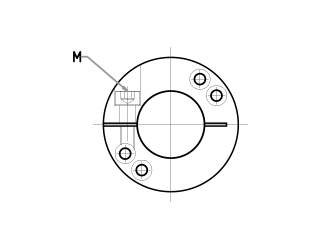

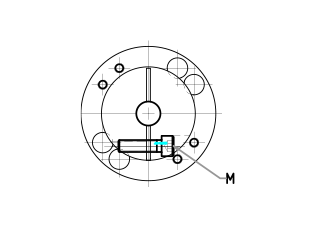

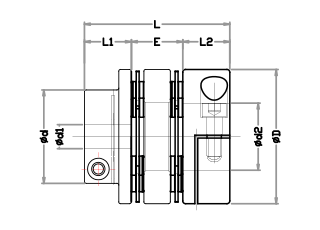

Floor Plan

Dimension

Product Name
External Diameter(D)
Length(L)
Bore diameter range(d1/d2)
Shaft depth

Shaft Insert Distance(E)

Bolt Size(M)
Download File
Min. Bore Diameter

Max. Bore Diameter

Shaft Insert Length(L1)

Shaft Insert Length(L2)

DWG
3D(STEP)

HDC 56 B

Ø56/Ø39

60.4
10
20
20
20
20.4
M5/M6

HDC 66 B

Ø66/Ø46

80
12
38
27
27
26
M6/M6

HDC 88 B

Ø88/Ø63

99.8
14
36
33
33
33.8
M6/M8

Specification

Product Name
Rated

Torque(Nm)

Rated

Torque(Nm)

Max. Rotational

Frequency(min-1)

Moment of

Inertia(kg*m²)

Static Torsional

Stiffness(Nm/rad)

Max. Lateral

Misalignment(mm)

Max. Angular

Misalignment(°)

Max. Axial

Misalignment(mm)

Mass(g)

HDC 56 B

36
72
7,000

5.22x10-5

2,400
0.1
1
0.2
280

HDC 66 B

65

130

6,500

1.42x10-4
3,200
0.13
1
0.2
510

HDC 88 B

185

370

5,500

4.83x10-4
7,000
0.15
1
0.2
1,010
