HELICAL Coupling

HELICAL Coupling - Clamping Screw Type



The HCS Series is made of two beams spirally twisted in a SUS-303 cylindrical material to provide soft elasticity in the direction of the shaft length. It is not only resistant to corrosion, but also easily transmits large torque and has far superior performance in response compared to aluminum couplings.


It can transmit up to twice as much torque as aluminum couplings of the same structure. It is a coupling suitable for places that require high-speed, high-response servo motors, stepping motors, etc.

Part number
HC-C
HC-S
HC-SS
HCS-C
Product shape
Characteristic
Single-piece structure, low backlash, high torsional rigidity, low inertia, excellent responsiveness, good end play tension
Stainless steel integral,

Waterproof, oil-proof, chemical-proof, cleanable

High torsional rigidity

Standard
Standard type
Standard type
Short type
Standard type
Texture
Aluminum Alloy(AL7075-T6)
All Stainless Steel(SUS 303)
Axial coupling method
Clamp
Set Screw
Set Screw
Clamp
Outer diameter
Ø16, Ø20, Ø25, Ø32, Ø42, Ø48
Ø16, Ø20, Ø25, Ø32, Ø42, Ø48

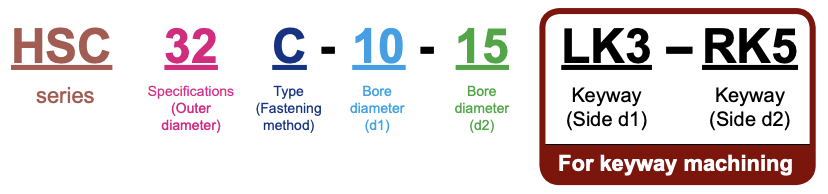

Ordering Instructions

  • Please specify the series, outer diameter, and bore size when placing your order.


  • If keyway machining (on the bore) is required, ensure to indicate this separately.


  • For assistance in selecting the right couplings, please contact our customer service center.

Standard Bore Diameter


※ Bore machining is available within the product’s minimum to maximum bore range beyond the standard bore sizes. (Refer to the figures on the right)

Standard bore diameter

(d1/d2,  mm)

3
4
5
6
6.35
8
10
12
13
14
15
16
18
19
20
22
HCS 16 C
●
●
●
●
●
●










HCS 20 C

●
●
●
●
●
●









HCS 25 C


●
●
●
●
●
●
●







HCS 32 C



●
●
●
●
●
●
●
●
●




HCS 42 C





●
●
●
●
●
●
●
●
●
●
●

Floor Plan

Dimension

Product Name
External Diameter(D)
Length(L)
Bore diameter range(d1/d2)
Shaft depth

Shaft Insert Distance(E)

Bolt Size(M)
Download File
Min. Bore Diameter

Max. Bore Diameter

Shaft Insert Length(L1)

Shaft Insert Length(L2)

DWG
3D(STEP)
HCS 16 C

Ø16

22
3
8
7
7
8
M2.5
Preparing
Preparing
HCS 20 C

Ø20

25
4
10
8
8
9
M2.5

HCS 25 C

Ø25

30
5
13
10
10
10
M3

HCS 32 C

Ø32

38
6
16
13
13
12
M4

HCS 42 C

Ø42

45
8
25
16
16
13
M6

Specification

Product Name
Rated

Torque(Nm)

Max

Torque(Nm)

Max. Rotational

Frequency(min-1)

Moment of

Inertia(kg*m²)

Static Torsional

Stiffness(Nm/rad)

Max. Lateral

Misalignment(mm)

Max. Angular

Misalignment(°)

Max. Axial

Misalignment(mm)

Mass(g)

HCS 16 C
1.0
2.0
24,500

1.00x10-6

20
0.1
3
0.2
22

HCS 20 C

1.4

2.8
20,000

1.03x10-6

30
0.1
3
0.2
46

HCS 25 C

1.7

3.4

16,000

3.04x10-6

48
0.1
3
0.25
88

HCS 32 C

3.6

7.2

13,000

1.03x10-5
140
0.15
3
0.3
192

HCS 42 C

8.1

16.3

10,500

3.63x10-5
320
0.15
3
0.3
368
