JIT COUPLING


PRODUCT

HELICAL Coupling

HELICAL Coupling

 - Set Screw Short Type



The HC-SS Series is a coupling designed to be short in length. A relief shape is machined on the inner diameter where the helical slit is formed to prevent damage to the coupling due to axial interference caused by eccentricity or misalignment, and the tightening angle of the fixing bolt is 120 degrees to disperse the force fixed to the shaft.

Part number
HC-C
HC-S
HC-SS
HCS-C
Product shape
Characteristic
Single-piece structure, low backlash, high torsional rigidity, low inertia, excellent responsiveness, good end play tension
Stainless steel integral,

Waterproof, oil-proof, chemical-proof, cleanable

High torsional rigidity

Standard
Standard type
Standard type
Short type
Standard type
Texture
Aluminum Alloy(DR 7075-6T)
All Stainless Steel(SUS 303)
Axial coupling method
Clamp
Set Screw
Set Screw
Clamp
Outer diameter
Ø16, Ø20, Ø25, Ø32, Ø42, Ø48
Ø16, Ø20, Ø25, Ø32, Ø42, Ø48

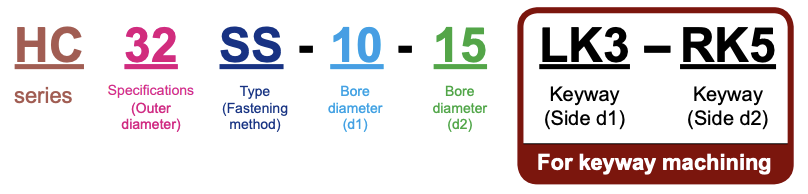

Ordering Instructions

  • Please specify the series, outer diameter, and bore size when placing your order.


  • If keyway machining (on the bore) is required, ensure to indicate this separately.


  • For assistance in selecting the right couplings, please contact our customer service center.

Standard Bore Diameter


※ Bore machining is available within the product’s minimum to maximum bore range beyond the standard bore sizes. (Refer to the figures on the right)

Standard bore diameter

(d1/d2,  mm)

3
4
5
6
6.35
8
10
12
13
14
15
16
18
19
20
22
24
25
26
28
30
HC 16 SS
●
●
●
●
●
●















HC 20 SS

●
●
●
●
●
●














HC 25 SS


●
●
●
●
●
●
●












HC 32 SS



●
●
●
●
●
●
●
●
●









HC 42 SS





●
●
●
●
●
●
●
●
●
●
●
●
●



HC 48 SS






●
●
●
●
●
●
●
●
●
●
●
●
●
●
●

Floor Plan

Dimension

Product Name
External Diameter(D)
Length(L)
Bore diameter range(d1/d2)
Shaft depth

Shaft Insert Distance(E)

Bolt Size(M)
Download File
Min. Bore Diameter

Max. Bore Diameter

Shaft Insert Length(L1)

Shaft Insert Length(L2)

DWG
3D(STEP)
HC 16 SS

Ø16

18
3
8
5
5
8
M3

HC 20 SS

Ø20

21
4
10
6
6
9
M4

HC 25 SS

Ø25

25
5
13
8
8
10
M4

HC 32 SS

Ø32

32
6
16
10
10
12
M5

HC 42 SS

Ø42

40
8
25
13.5
13.5
13
M6

HC 48 SS

Ø48

48
10
30
16
16
16
M

Specification

Product Name
Rated

Torque(Nm)

Max

Torque(Nm)

Max. Rotational

Frequency(min-1)

Moment of

Inertia(kg*m²)

Static Torsional

Stiffness(Nm/rad)

Max. Lateral

Misalignment(mm)

Max. Angular

Misalignment(°)

Max. Axial

Misalignment(mm)

Mass(g)

HC 16 SS
0.8
1.7
24,500

3.74x10-7

65
0.1
3
0.2
9.8

HC 20 SS

1.1

2.1
20,000

1.03x10-6

140
0.1
3
0.2
17.8

HC 25 SS

2.1

4.1

16,000

3.04x10-6

170
0.1
3
0.25
33.1

HC 32 SS

4.1

8.2

13,000

1.03x10-5
380
0.15
3
0.3
69.5

HC 42 SS

9.8

19.5

11,000

3.63x10-5
460
0.15
3
0.3
149.6

HC 48 SS

14.6

29.2

9,000

7.44x10-5
740
0.15
3
0.3
234.4
