JIT COUPLING


PRODUCT

HELICAL Coupling

HELICAL Coupling - Set Screw Type



The HC Series uses high-strength duralumin (AL 7075-6T) to provide excellent torsional rigidity and good tolerance for misalignment and end play. The surface is anodized to provide excellent corrosion resistance and is mainly used for X-Y Robots, medical devices, winding machines, optical devices, measuring instruments, etc.

Part number
HC-C
HC-S
HC-SS
HCS-C
Product shape
Characteristic
Single-piece structure, low backlash, high torsional rigidity, low inertia, excellent responsiveness, good end play tension
Stainless steel integral,

Waterproof, oil-proof, chemical-proof, cleanable

High torsional rigidity

Standard
Standard type
Standard type
Short type
Standard type
Texture
Aluminum Alloy(AL7075-T6)
All Stainless Steel(SUS 303)
Axial coupling method
Clamp
Set Screw
Set Screw
Clamp
Outer diameter
Ø16, Ø20, Ø25, Ø32, Ø42, Ø48
Ø16, Ø20, Ø25, Ø32, Ø42, Ø48

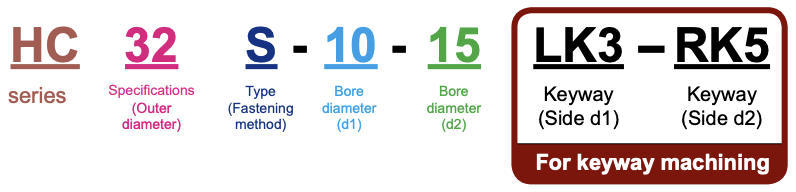

Ordering Instructions

  • Please specify the series, outer diameter, and bore size when placing your order.


  • If keyway machining (on the bore) is required, ensure to indicate this separately.


  • For assistance in selecting the right couplings, please contact our customer service center.

Standard Bore Diameter


※ Bore machining is available within the product’s minimum to maximum bore range beyond the standard bore sizes. (Refer to the figures on the right)

Standard bore diameter

(d1/d2,  mm)

3
4
5
6
6.35
8
10
12
13
14
15
16
18
19
20
22
24
25
26
28
30
HC 16 S
●
●
●
●
●
●















HC 20 S

●
●
●
●
●
●














HC 25 S


●
●
●
●
●
●
●












HC 32 S



●
●
●
●
●
●
●
●
●









HC 42 S





●
●
●
●
●
●
●
●
●
●
●
●
●



HC 48 S






●
●
●
●
●
●
●
●
●
●
●
●
●
●
●

Floor Plan

Dimension

Product Name
External Diameter(D)
Length(L)
Bore diameter range(d1/d2)
Shaft depth

Shaft Insert Distance(E)

Bolt Size(M)
Download File
Min. Bore Diameter

Max. Bore Diameter

Shaft Insert Length(L1)

Shaft Insert Length(L2)

DWG
3D(STEP)
HC 16 S

Ø16

22
3
8
7
7
8
M3

HC 20 S

Ø20

25
4
10
8
8
9
M4

HC 25 S

Ø25

30
5
13
10
10
10
M4

HC 32 S

Ø32

38
6
16
13
13
12
M5

HC 42 S

Ø42

45
8
25
16
16
13
M6

HC 48 S

Ø48

54
10
30
19
19
16
M8

Specification

Product Name
Rated

Torque(Nm)

Max

Torque(Nm)

Max. Rotational

Frequency(min-1)

Moment of

Inertia(kg*m²)

Static Torsional

Stiffness(Nm/rad)

Max. Lateral

Misalignment(mm)

Max. Angular

Misalignment(°)

Max. Axial

Misalignment(mm)

Mass(g)

HC 16 S
0.8
1.7
24,500

3.74x10-7

65
0.1
3
0.2
11.9

HC 20 S

1.1

2.1
20,000

1.03x10-6

140
0.1
3
0.2
17.8

HC 25 S

2.1

4.1

16,000

3.04x10-6

170
0.1
3
0.25
33.1

HC 32 S

4.1

8.2

13,000

1.03x10-5
380
0.15
3
0.3
69.5

HC 42 S

9.8

19.5

11,000

3.63x10-5
460
0.15
3
0.3
149.6

HC 48 S

14.6

29.2

9,000

7.44x10-5
740
0.15
3
0.3
234.4
