JIT COUPLING


PRODUCT

Disc Coupling

Disc Coupling -

Clamping Screw Single Disc Type



The DC Series is a metal-laminated plate spring type, and has low wear and high life expectancy because there are no moving contact parts. The hub body is made of high-strength aluminum, so the moment of inertia is small. There is no backlash and it is high-strength. For safety, do not use it beyond the rated rotation and rated capacity.

Part number
DC-A
DC-SA
DC-B
DC-SB
DC-C
DC-SC
Product shape
Characteristic
Excellent high-precision position control, same positive and negative torsional constant, no maintenance required, high torsional rigidity, high torque
Backlash 0
Excellent use of short space
Suitable for use with sub reducers
Use of large shaft diameter for space
Standard
Standard type
Short type
Standard type
Short type
Standard type
Short type
Texture
Aluminum (AL7075-T6) / Disc (Stainless Steel)
Axial coupling method
Clamping
Outer diameter
Ø32, Ø42, Ø48, Ø54, Ø68
Ø20, Ø25, Ø32, Ø35, Ø39, Ø42, Ø48, Ø54, Ø68, Ø80

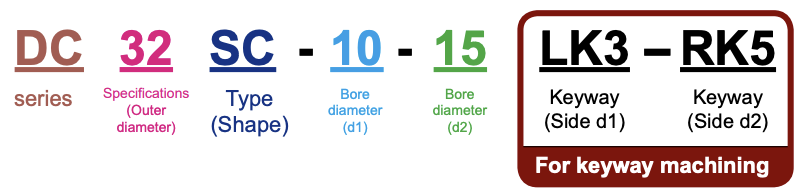

Ordering Instructions

  • Please specify the series, outer diameter, and bore size when placing your order.


  • If keyway machining (on the bore) is required, ensure to indicate this separately.


  • For assistance in selecting the right couplings, please contact our customer service center.

Standard Bore Diameter


※ Bore machining is available within the product’s minimum to maximum bore range beyond the standard bore sizes. (Refer to the figures on the right)

Standard bore diameter

(d1/d2,  mm)

3
4
5
6
6.35
8
10
12
14
15
16
18
19
20
22
24
25
28
30
32
34
35
38
40
42
44
45
48
DC 20 SC
●
●
●
●
●
●






















DC 25 SC


●
●
●
●
●
●




















DC 32 SC



●
●
●
●
●
●
●
●

















DC 35 SC



●
●
●
●
●
●
●
●

















DC 39 SC





●
●
●
●
●
●
●
●















DC 42 SC





●
●
●
●
●
●
●
●
●














DC 48 SC






●
●
●
●
●
●
●
●
●













DC 54 SC






●
●
●
●
●
●
●
●
●
●
●
●










DC 68 SC








●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●




DC 80 SC








●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●

Floor Plan

Dimension

Product Name
External Diameter(D)
Length(L)
Bore diameter range(d1/d2)
Shaft depth

Shaft Insert Distance(E)

Bolt Size(M)
Download File
Min. Bore Diameter

Max. Bore Diameter

Shaft Insert Length(L1)

Shaft Insert Length(L2)

DWG
3D(STEP)
DC 20 SC

Ø20

17.9
3
8
8
8
1.9
M2.5
DC 25 SC

Ø25

23.5
5
13
11
11
1.5
M3

DC 32 SC

Ø32

28.1
6
16
13
13
2.1
M4

DC 35 SC

Ø35

28.1
6
17
12.9
12.9
2.3
M4
Please contact us for the drawing.

DC 39 SC

Ø39

31.6
8
19
14.1
14.1
3.45
M4

DC 42 SC

Ø42

33.2
8
20
15
15
3.2
M4

DC 48 SC

Ø48

37
10
22
17
17
3
M5

DC 54 SC

Ø54

45.1
10
28
20
20
5.1
M6

DC 68 SC

Ø68

56.1
14
40
26
26
4.1
M6

DC 80 SC

Ø81

65.4
14
48
30
30
5.4
M8

Specification

Product Name
Rated

Torque(Nm)

Rated

Torque(Nm)

Max. Rotational

Frequency(min-1)

Moment of

Inertia(kg*m²)

Static Torsional

Stiffness(Nm/rad)

Max. Lateral

Misalignment(mm)

Max. Angular

Misalignment(°)

Max. Axial

Misalignment(mm)

Mass(g)

DC 20 SC
2.0
4.0
13,000
2.1x10-6
540
0.1
1
0.1
23
DC 25 SC
2.5
5.1
12,750
3.24x10-6
600
0.1
1
0.1
29.6

DC 32 SC

5.3
10.6
11,000

1.03x10-5

1,300
0.1
1
0.1
57.8

DC 35 SC

6.9
13.9
9,500
1.11x10-5
1,500
0.15
1.2
0.15
70
DC 39 SC
9.6
19.2
9,500
1.57x10-5
1,700
0.15
1.5
0.15
85

DC 42 SC

12.0

24.0

9,000

2.66x10-5
1,900
0.15
1.5
0.2
120

DC 48 SC

24.4

48.8

7,750

3.71x10-5
4,000
0.2
2
0.2
170

DC 54 SC

44.0

88.0

7,000

9.86x10-4
7,000
0.2
2
0.2
216

DC 68 SC

73.5

147.0

6,400

3.02x10-4
11,000
0.2
2
0.2
427

DC 80 SC

100.0
200.0
5,900
7.09x10-4
20,000
0.2
2
0.2
720
