JIT COUPLING


PRODUCT

Disc Coupling

Disc Coupling -

Clamping Screw Double Disc Type



The DC-B Type is ideal when there is a difference in the diameter of the shafts to be connected. For example, it is ideal when connecting a large shaft diameter of a servo motor reducer output shaft and a small shaft diameter of a ball screw shaft. The high-elasticity disc is made of stainless steel (SUS 303) and has a long service life.

Part number
DC-A
DC-SA
DC-B
DC-SB
DC-C
DC-SC
Product shape
Characteristic
Excellent high-precision position control, same positive and negative torsional constant, no maintenance required, high torsional rigidity, high torque
Backlash 0
Excellent use of short space
Suitable for use with sub reducers
Use of large shaft diameter for space
Standard
Standard type
Short type
Standard type
Short type
Standard type
Short type
Texture
Aluminum (AL7075-T6) / Disc (Stainless Steel)
Axial coupling method
Clamping
Outer diameter
Ø32, Ø42, Ø48, Ø54, Ø68
Ø20, Ø25, Ø32, Ø35, Ø39, Ø42, Ø48, Ø54, Ø68, Ø80

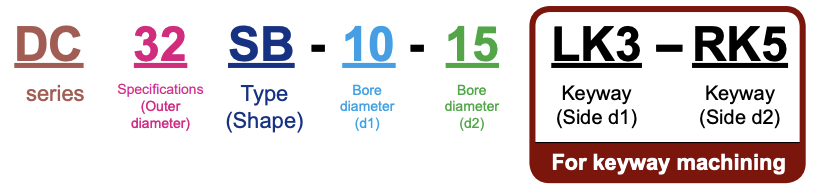

Ordering Instructions

  • Please specify the series, outer diameter, and bore size when placing your order.


  • If keyway machining (on the bore) is required, ensure to indicate this separately.


  • For assistance in selecting the right couplings, please contact our customer service center.

Standard Bore Diameter


※ Bore machining is available within the product’s minimum to maximum bore range beyond the standard bore sizes. (Refer to the figures on the right)

Standard bore diameter

(d1/d2,  mm)

3
4
5
6
6.35
8
10
12
14
15
16
18
19
20
22
24
25
28
30
32
34
35
38
40
DC 32 SB

●
●
●
●
●
●
●
●
●
●













DC 42 SB



●
●
●
●
●
●
●
●
●
●
●










DC 48 SB





●
●
●
●
●
●
●
●
●
●









DC 54 SB






●
●
●
●
●
●
●
●
●
●
●
●






DC 68 SB






●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●

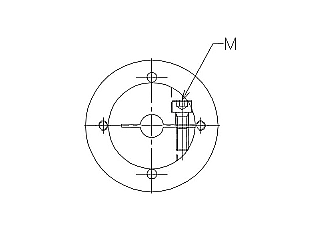

Floor Plan

Dimension

Product Name
External Diameter(D)
Length(L)
Bore diameter range(d1/d2)
Shaft depth

Shaft Insert Distance(E)

Bolt Size(M)
Download File
Min. Bore Diameter

Max. Bore Diameter

Shaft Insert Length(L1)

Shaft Insert Length(L2)

DWG
3D(STEP)
DC 32 SB

Ø32/Ø20

28.1
4
16
13
13
2.1
M2.5/M4

DC 42 SB

Ø42/Ø28

31.7
6
20
13.5
13.5
3.2
M3/M4

DC 48 SB

Ø48/Ø31

37
8
22
17
17
3
M4/M5

DC 54 SB

Ø54/Ø35

46.1
10
28
20
20
6.1
M5/M6

DC 68 SB

Ø68/Ø44.5

53.3
10
40
22
26
5.3
M6

Specification

Product Name
Rated

Torque(Nm)

Rated

Torque(Nm)

Max. Rotational

Frequency(min-1)

Moment of

Inertia(kg*m²)

Static Torsional

Stiffness(Nm/rad)

Max. Lateral

Misalignment(mm)

Max. Angular

Misalignment(°)

Max. Axial

Misalignment(mm)

Mass(g)

DC 32 SB
5.8
11.5
12,750

4.02x10-6

1,300
0.1
1
0.1
68

DC 42 SB

13.1

26.1

10,000

1.35x10-5

1,900
0.1
1.5
0.2
108

DC 48 SB

21.7

43.4

7,750

4.18x10-5
4,000
0.13
1.5
0.2
148

DC 54 SB

35.6

71.2

7,000

7.54x10-5
7,000
0.15
2
0.2
182

DC 68 SB

69.5

139.1

6,400

2.65x10-4
11,000
0.2
2
0.2
378
