Disc Coupling

Disc Coupling -

Clamping Screw Single Disc Type



The DC-SA Type is a single disc plate type. It is suitable for small spaces because it is short. Since the disc flow rate is relatively smaller than that of the double disc type, the two axes must be well aligned. The surface is hard anodized, so it has excellent corrosion resistance, oil resistance, and chemical resistance.

Part number
DC-A
DC-SA
DC-B
DC-SB
DC-C
DC-SC
Product shape
Characteristic
Excellent high-precision position control, same positive and negative torsional constant, no maintenance required, high torsional rigidity, high torque
Backlash 0
Excellent use of short space
Suitable for use with sub reducers
Use of large shaft diameter for space
Standard
Standard type
Short type
Standard type
Short type
Standard type
Short type
Texture
Aluminum (AL7075-T6) / Disc (Stainless Steel)
Axial coupling method
Clamping
Outer diameter
Ø32, Ø42, Ø48, Ø54, Ø68
Ø20, Ø25, Ø32, Ø35, Ø39, Ø42, Ø48, Ø54, Ø68, Ø80

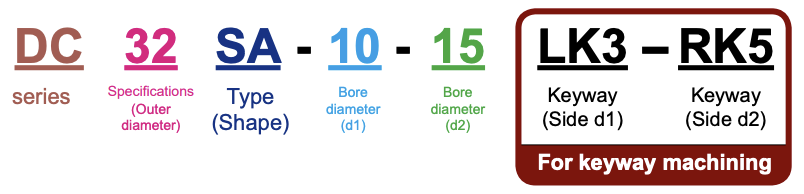

Ordering Instructions

  • Please specify the series, outer diameter, and bore size when placing your order.


  • If keyway machining (on the bore) is required, ensure to indicate this separately.


  • For assistance in selecting the right couplings, please contact our customer service center.

Standard Bore Diameter


※ Bore machining is available within the product’s minimum to maximum bore range beyond the standard bore sizes. (Refer to the figures on the right)

Standard bore diameter

(d1/d2,  mm)

3
4
5
6
6.35
8
10
12
14
15
16
17
18
19
20
22
24
25
DC 32 SA

●
●
●
●
●
●











DC 42 SA



●
●
●
●
●
●
●
●







DC 48 SA





●
●
●
●
●
●
●






DC 54 SA






●
●
●
●
●
●
●
●
●



DC 68 SA






●
●
●
●
●
●
●
●
●
●
●
●

Floor Plan

Dimension

Product Name
External Diameter(D)
Length(L)
Bore diameter range(d1/d2)
Shaft depth

Shaft Insert Distance(E)

Bolt Size(M)
Download File
Min. Bore Diameter

Max. Bore Diameter

Shaft Insert Length(L1)

Shaft Insert Length(L2)

DWG
3D(STEP)
DC 32 SA

Ø32/Ø28

28.1
4
10
13
13
2.1
M2.5

DC 42 SA

Ø42/Ø28

30.2
6
16
13.5
13.5
3.2
M3

DC 48 SA

Ø48/Ø31

37
8
17
17
17
3
M3

DC 54 SA

Ø54/Ø35

47.1
10
20
20
20
7.1
M5

DC 68 SA

Ø68/Ø44.5

50.5
10
25
22
22
6.5
M6

Specification

Product Name
Rated

Torque(Nm)

Rated

Torque(Nm)

Max. Rotational

Frequency(min-1)

Moment of

Inertia(kg*m²)

Static Torsional

Stiffness(Nm/rad)

Max. Lateral

Misalignment(mm)

Max. Angular

Misalignment(°)

Max. Axial

Misalignment(mm)

Mass(g)

DC 32 SA
5.8
11.5
12,750

3.98x10-6

1,300
0.1
1
0.1
65

DC 42 SA

13.1

26.1

10,000

1.56x10-5

1,900
0.1
1.5
0.2
71

DC 48 SA

21.7

43.4

7,750

1.32x10-5
4,000
0.13
1.5
0.2
103

DC 54 SA

35.6

71.2

7,000

6.53x10-5
7,000
0.15
2
0.2
166

DC 68 SA

69.5

139.1

6,400

1.07x10-4
11,000
0.2
2
0.2
283
