Disc Coupling

Disc Coupling -

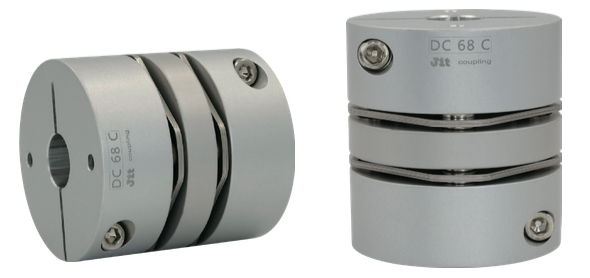

Clamping Screw Double Disc Type



The DC Series has the most ideal materials and structure for zero backlash and has excellent resistance to repeated stress. Since the eccentricity is small, it is necessary to accurately align the two axes. It does not require separate maintenance and has excellent oil and heat resistance.

Part number
DC-A
DC-SA
DC-B
DC-SB
DC-C
DC-SC
Product shape
Characteristic
Excellent high-precision position control, same positive and negative torsional constant, no maintenance required, high torsional rigidity, high torque
Backlash 0
Excellent use of short space
Suitable for use with sub reducers
Use of large shaft diameter for space
Standard
Standard type
Short type
Standard type
Short type
Standard type
Short type
Texture
Aluminum (AL7075-T6) / Disc (Stainless Steel)
Axial coupling method
Clamping
Outer diameter
Ø32, Ø42, Ø48, Ø54, Ø68
Ø20, Ø25, Ø32, Ø35, Ø39, Ø42, Ø48, Ø54, Ø68, Ø80

Ordering Instructions

  • Please specify the series, outer diameter, and bore size when placing your order.


  • If keyway machining (on the bore) is required, ensure to indicate this separately.


  • For assistance in selecting the right couplings, please contact our customer service center.

Standard Bore Diameter


※ Bore machining is available within the product’s minimum to maximum bore range beyond the standard bore sizes. (Refer to the figures on the right)

Standard bore diameter

(d1/d2,  mm)

3
4
5
6
6.35
8
10
12
14
15
16
18
19
20
22
24
25
28
30
32
34
35
38
40
42
44
45
48
DC 20 C
●
●
●
●
●
●






















DC 25 C


●
●
●
●
●
●




















DC 32 CN



●
●
●
●
●
●
●
●

















DC 32 C



●
●
●
●
●
●
●
●

















DC 35 CN



●
●
●
●
●
●
●
●

















DC 35 C



●
●
●
●
●
●
●
●

















DC 39 CN





●
●
●
●
●
●
●
●















DC 39 C





●
●
●
●
●
●
●
●















DC 42 CN





●
●
●
●
●
●
●
●
●














DC 42 C





●
●
●
●
●
●
●
●
●














DC 48 C






●
●
●
●
●
●
●
●
●













DC 54 C






●
●
●
●
●
●
●
●
●
●
●
●










DC 68 B








●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●




DC 80 C








●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●

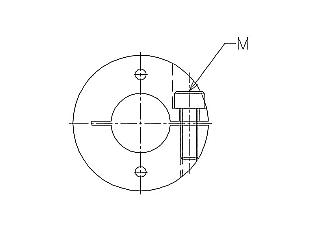

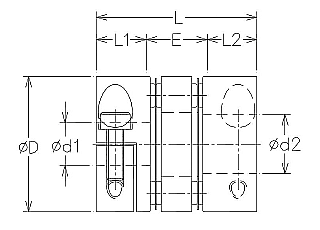

Floor Plan

Dimension

Product Name
External Diameter(D)
Length(L)
Bore diameter range(d1/d2)
Shaft depth

Shaft Insert Distance(E)

Bolt Size(M)
Download File
Min. Bore Diameter

Max. Bore Diameter

Shaft Insert Length(L1)

Shaft Insert Length(L2)

DWG
3D(STEP)
DC 20 C

Ø20

22.8
3
8
8
8
6.8
M2.5
DC 25 C

Ø25

32
5
13
11
11
10
M3
DC 32 CN

Ø32

34
6
16
13
13
8
M4
Please contact us for the drawing.

DC 32 C

Ø32

38
6
16
13
13
12
M4

DC 35 CN

Ø35

34.5
6
17
12.9
12.9
8.7
M4
Please contact us for the drawing.

DC 35 C

Ø35

38
6
17
12.9
12.9
12.2
M4

DC 39 CN

Ø39

39.6
8
19
14.1
14.1
11.4
M4

DC 39 C

Ø39

44.8
8
19
14.1
14.1
16.6
M4

DC 42 CN

Ø42

42.5
8
20
15
15
12.5
M4

DC 42 C

Ø42

46
8
20
15
15
16
M4

DC 48 C

Ø48

50
10
22
17
17
16
M5

DC 54 C

Ø54

61
10
28
20
20
21
M6

DC 68 C

Ø68

72
14
40
26
26
20
M6

DC 80 C

Ø81

82
14
48
30
30
22
M8

Specification

Product Name
Rated

Torque(Nm)

Rated

Torque(Nm)

Max. Rotational

Frequency(min-1)

Moment of

Inertia(kg*m²)

Static Torsional

Stiffness(Nm/rad)

Max. Lateral

Misalignment(mm)

Max. Angular

Misalignment(°)

Max. Axial

Misalignment(mm)

Mass(g)

DC 20 C
1.5
3.0
15,500
2.1x10-6
540
0.1
1
0.1
25
DC 25 C
3.5
7.0
13,000
3.24x10-6
600
0.1
1
0.1
42.4
DC 32 CN
7.3
14.7
12,750

8.98x10-6

1,300
0.1
1
0.1
73.5

DC 32 C

7.3
14.7
12,750

1.03x10-5

1,300
0.1
1
0.1
82.5
DC 35 CN
8.0
16.1
9,500
1.32x10-5
1,550
0.16
1.2
0.15
82

DC 35 C

9.6
19.2
9,500
1.51x10-5
1,550
0.16
1.4
0.15
90
DC 39 CN
11.1
22.2
9,500
2.03x10-5
1,750
0.18
1.4
0.15
114
DC 39 C
13.3
26.5
9,500
2.20x10-5
1,750
0.18
1.5
0.15
126

DC 42 CN

16.6

33.1

9,000

1.90x10-5

1,900
0.15
1.5
0.2
165

DC 42 C

16.6

33.1

9,000

3.71x10-5
1,900
0.15
1.5
0.2
172

DC 48 C

24.7

49.4

8,250

6.89x10-5
4,000
0.2
2
0.2
189

DC 54 C

35.2

70.4

7,000

1.36x10-4
7,000
0.2
2
0.2
293

DC 68 C

70.3

140.6

5,900

3.68x10-4
11,000
0.2
2
0.2
548

DC 80 C

93.4
186.7
4,900
7.09x10-4
20,000
0.2
2
0.2
1051
