PEEK Flexible Beam Coupling
PEEK Flexible Beam Coupling -
Set Screw Short Type
The BCP Series is a coupling that absorbs eccentricity and misalignment by processing multiple slits in the PEEK material body. It is made of PEEK material and is mainly used for special purposes such as plasma, RF, semiconductors, and displays. It has a very small moment of inertia and is suitable for transmitting light torque. It has the advantage of being a single-piece structure, so there is no backlash and maintenance is unnecessary.
Part number | BCP-C | BCP-SC | BCP-S | BCP-SS |
Product shape |  |  |  |  |
Characteristic | PEEK integral coupling, suitable for cleanroom environment, excellent heat and chemical resistance, very small amount of outgas when used at high temperature, very stable plasma flow | |||
Standard | Standard type | Short type | Standard type | Short type |
Texture | PEEK | |||
Axial coupling method | Clamping | Set Screw | ||
Outer diameter | Ø20, Ø25, Ø32, Ø42 | |||

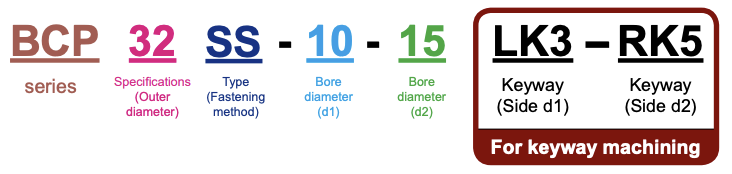

Ordering Instructions
For assistance in selecting the right couplings, please contact our customer service center.
Standard Bore Diameter
※ Bore machining is available within the product’s minimum to maximum bore range beyond the standard bore sizes. (Refer to the figures on the right)
Standard bore diameter (d1/d2, mm) | 3 | 4 | 5 | 6 | 6.35 | 8 | 10 | 12 | 14 | 15 | 16 | 18 | 19 | 20 | 22 | 24 | 25 | 26 | 28 |
BCP 20 SS | ● | ● | ● | ● | ● | ● | |||||||||||||
BCP 25 SS | ● | ● | ● | ● | ● | ● | |||||||||||||
BCP 32 SS | ● | ● | ● | ● | ● | ● | ● | ● |
Floor Plan
Dimension
Product Name | External Diameter(D) | Length(L) | Bore diameter range(d1/d2) | Shaft depth | Shaft Insert Distance(E) | Bolt Size(M) | Download File | |||
Min. Bore Diameter | Max. Bore Diameter | Shaft Insert Length(L1) | Shaft Insert Length(L2) | DWG | 3D(STEP) | |||||
BCP 20 SS | Ø20 | 23.8 | 4 | 10 | 8 | 8 | 7.8 | M3 |  |  |
BCP 25 SS | Ø25 | 26 | 5 | 12 | 9 | 9 | 8 | M4 | | |
BCP 32 SS | Ø32 | 32 | 6 | 16 | 10 | 10 | 12 | M5 | | |
Specification
Product Name | Rated Torque(Nm) | Rated Torque(Nm) | Max. Rotational Frequency(min-1) | Moment of Inertia(kg*m²) | Static Torsional Stiffness(Nm/rad) | Max. Lateral Misalignment(mm) | Max. Angular Misalignment(°) | Max. Axial Misalignment(mm) | Mass(g) |
BCP 20 SS | 0.6 | 1.2 | 19,000 | 2.28x10-7 | 23 | 0.1 | 3 | 0.2 | 8 |
BCP 25 SS | 1.3 | 2.6 | 16,500 | 7.03x10-7 | 36 | 0.1 | 3 | 0.25 | 16 |
BCP 32 SS | 1.9 | 3.7 | 14,000 | 1.85x10-5 | 70 | 0.15 | 3 | 0.3 | 30 |
