PEEK Flexible Beam Coupling
PEEK Flexible Beam Coupling -
Clamping Screw Short Type
The PEEK material used in the BCP Series has excellent chemical resistance, very low moisture absorption, excellent wear resistance, and does not deteriorate even when exposed to high-temperature water and steam. The BCP Series is made of PEEK material and is mainly used in clean room environments, plasma, RF, semiconductor, display, and other production research equipment.
Part number | BCP-C | BCP-SC | BCP-S | BCP-SS |
Product shape |  |  |  |  |
Characteristic | PEEK integral coupling, suitable for cleanroom environment, excellent heat and chemical resistance, very small amount of outgas when used at high temperature, very stable plasma flow | |||
Standard | Standard type | Short type | Standard type | Short type |
Texture | PEEK | |||
Axial coupling method | Clamping | Set Screw | ||
Outer diameter | Ø20, Ø25, Ø32, Ø42 | |||

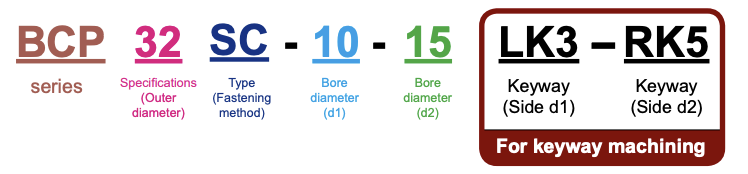

Ordering Instructions
For assistance in selecting the right couplings, please contact our customer service center.
Standard Bore Diameter
※ Bore machining is available within the product’s minimum to maximum bore range beyond the standard bore sizes. (Refer to the figures on the right)
Standard bore diameter (d1/d2, mm) | 3 | 4 | 5 | 6 | 6.35 | 8 | 10 | 12 | 14 | 15 | 16 | 18 | 19 | 20 | 22 | 24 | 25 | 26 | 28 |
BCP 20 SC | ● | ● | ● | ● | ● | ● | |||||||||||||
BCP 25 SC | ● | ● | ● | ● | ● | ● | |||||||||||||
BCP 32 SC | ● | ● | ● | ● | ● | ● | ● | ● |
Floor Plan
Dimension
Product Name | External Diameter(D) | Length(L) | Bore diameter range(d1/d2) | Shaft depth | Shaft Insert Distance(E) | Bolt Size(M) | Download File | |||
Min. Bore Diameter | Max. Bore Diameter | Shaft Insert Length(L1) | Shaft Insert Length(L2) | DWG | 3D(STEP) | |||||
BCP 20 SC | Ø20 | 23.8 | 4 | 10 | 8 | 8 | 7.8 | M3 |  |  |
BCP 25 SC | Ø25 | 26 | 5 | 12 | 9 | 9 | 8 | M4 | | |
BCP 32 SC | Ø32 | 32 | 6 | 16 | 10 | 10 | 12 | M5 | | |
Specification
Product Name | Rated Torque(Nm) | Rated Torque(Nm) | Max. Rotational Frequency(min-1) | Moment of Inertia(kg*m²) | Static Torsional Stiffness(Nm/rad) | Max. Lateral Misalignment(mm) | Max. Angular Misalignment(°) | Max. Axial Misalignment(mm) | Mass(g) |
BCP 20 SC | 0.6 | 1.2 | 19,000 | 2.28x10-7 | 24 | 0.1 | 3 | 0.2 | 10 |
BCP 25 SC | 1.3 | 2.6 | 16,500 | 7.03x10-7 | 41 | 0.1 | 3 | 0.25 | 16 |
BCP 32 SC | 3.0 | 3.7 | 14,000 | 1.85x10-5 | 70 | 0.15 | 3 | 0.3 | 30 |
