PEEK Flexible Beam Coupling

PEEK Flexible Beam Coupling -

Set Screw Standard Type



The BCP Series is a coupling that absorbs eccentricity and misalignment by processing multiple slits in the PEEK material body. Made of PEEK material, it is mainly used for special purposes such as plasma, RF, semiconductor, and display. It has a very small moment of inertia and is suitable for transmitting light torque. It has the advantage of being a single-piece structure, so it does not generate backlash and requires no maintenance.

Part number
BCP-C
BCP-SC
BCP-S
BCP-SS
Product shape
Characteristic
PEEK integral coupling, suitable for cleanroom environment, excellent heat and chemical resistance,
very small amount of outgas when used at high temperature, very stable plasma flow
Standard
Standard type
Short type
Standard type
Short type
Texture
PEEK
Axial coupling method
Clamping
Set Screw
Outer diameter
Ø20, Ø25, Ø32, Ø42

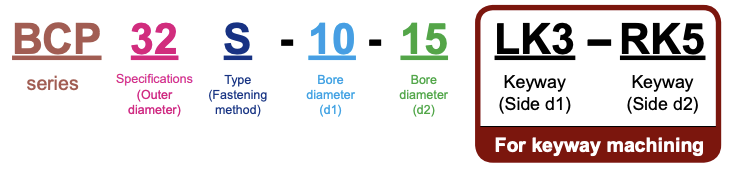

Ordering Instructions

  • Please specify the series, outer diameter, and bore size when placing your order.


  • If keyway machining (on the bore) is required, ensure to indicate this separately.


  • For assistance in selecting the right couplings, please contact our customer service center.

Standard Bore Diameter


※ Bore machining is available within the product’s minimum to maximum bore range beyond the standard bore sizes. (Refer to the figures on the right)

Standard bore diameter

(d1/d2,  mm)

3
4
5
6
6.35
8
10
12
14
15
16
18
19
20
22
24
25
26
28
BCP 20 S

●
●
●
●
●
●












BCP 25 S


●
●
●
●
●
●











BCP 32 S



●
●
●
●
●
●
●
●








Floor Plan

Dimension

Product Name
External Diameter(D)
Length(L)
Bore diameter range(d1/d2)
Shaft depth

Shaft Insert Distance(E)

Bolt Size(M)
Download File
Min. Bore Diameter

Max. Bore Diameter

Shaft Insert Length(L1)

Shaft Insert Length(L2)

DWG
3D(STEP)
BCP 20 S

Ø20

36
4
10
8
8
20
M3
BCP 25 S

Ø25

40
5
12
9
9
22
M4
BCP 32 S

Ø32

48
6
16
10
10
28
M5

Specification

Product Name
Rated

Torque(Nm)

Rated

Torque(Nm)

Max. Rotational

Frequency(min-1)

Moment of

Inertia(kg*m²)

Static Torsional

Stiffness(Nm/rad)

Max. Lateral

Misalignment(mm)

Max. Angular

Misalignment(°)

Max. Axial

Misalignment(mm)

Mass(g)

BCP 20 S
0.7
1.4
9,000
4.62x10-7
19
0.25
5
0.2
12
BCP 25 S
1.3
2.7
8,000

1.03x10-6

34
0.3
5
0.25
22
BCP 32 S
3.0
6.1
7,000

3.04x10-5

61
0.4
5
0.3
42
